With the growing demand for automation and the ongoing labor shortage, more companies are turning to robotics to improve efficiency and reduce errors. However, many still struggle with the high costs and technical barriers of implementing robotic systems. Fortunately, there's a simpler way to build and program your own robots without the need for complex programming or expensive custom solutions.
There's an easier way to build and program robots.

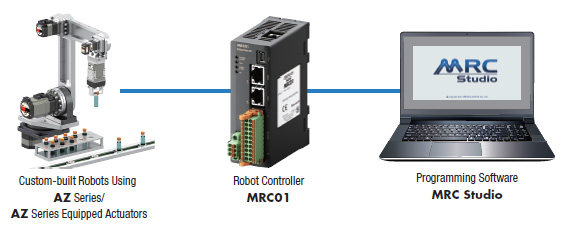

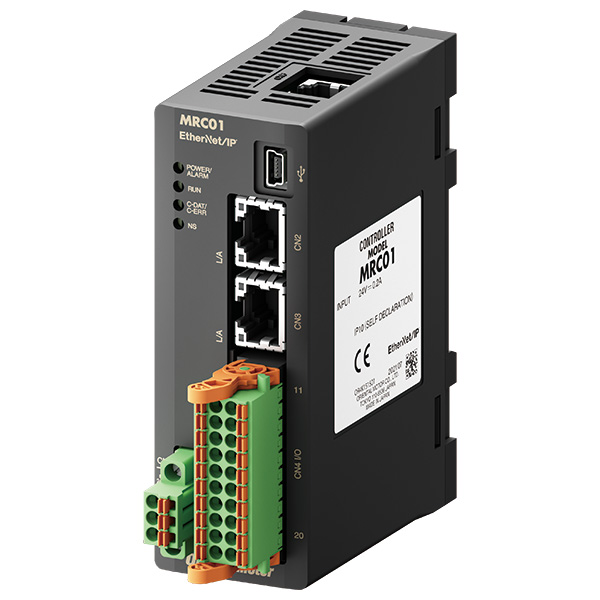

Oriental Motor has introduced the MRC01 robot controller and MRC Studio programming software, designed to make multi-axis robotics more affordable, easier to build, and straightforward to program using standard, off-the-shelf components. Whether you're looking to automate a simple pick-and-place task or a more complex assembly line, this system offers a powerful yet accessible solution.
The MRC01 is compatible with various types of robots, including vertically articulated, SCARA, palletizer, and Cartesian robots. It works seamlessly with the AlphaStep AZ Series motors, actuators, and drivers, making it easy to integrate into your existing setup. With its intuitive interface, even those new to robotics can quickly get started.
The MRC01 supports a wide range of robotic applications, from simple pick-and-place tasks to complex motion control. Its intuitive programming interface allows users to create programs by selecting commands rather than writing code, making it ideal for those without a background in ladder logic or traditional PLC programming.

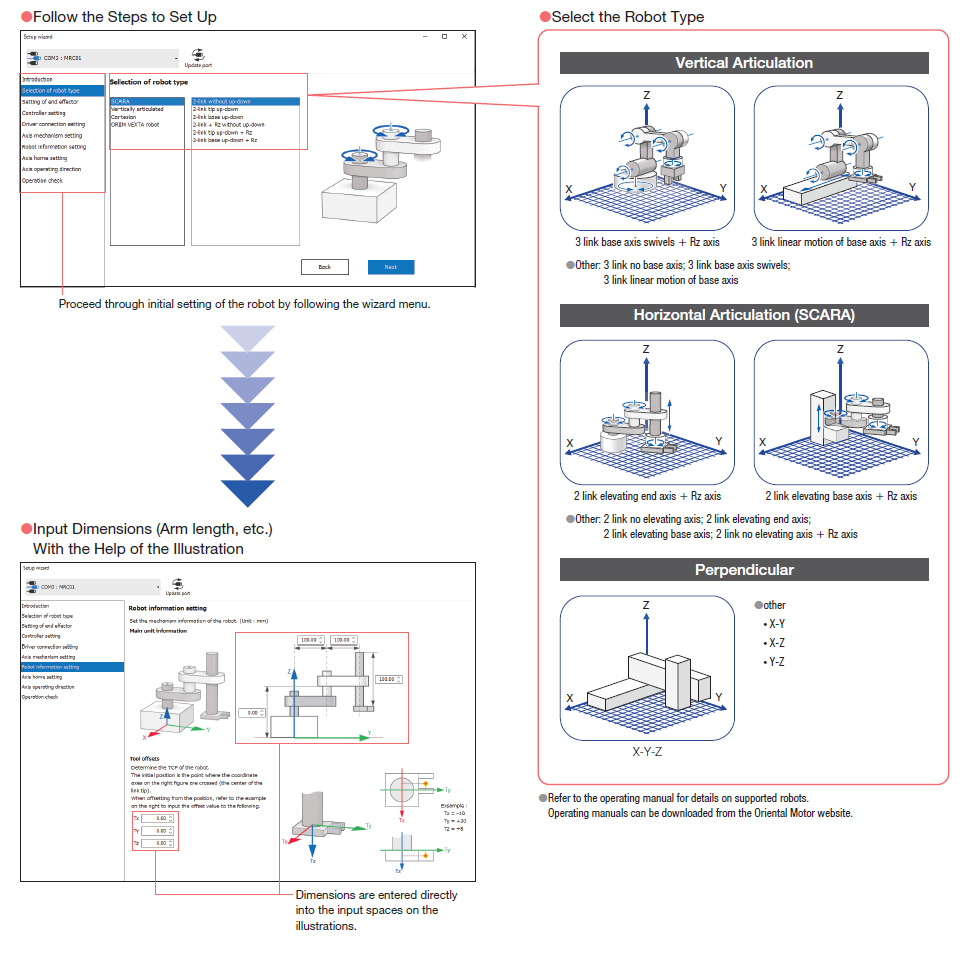

STEP 1 Â Easy Setup with Step by Step Guidance
Setting up the MRC01 is straightforward thanks to a guided wizard that helps you select the robot type and input mechanism information. Even beginners can quickly configure the system using visual instructions and step-by-step guidance.

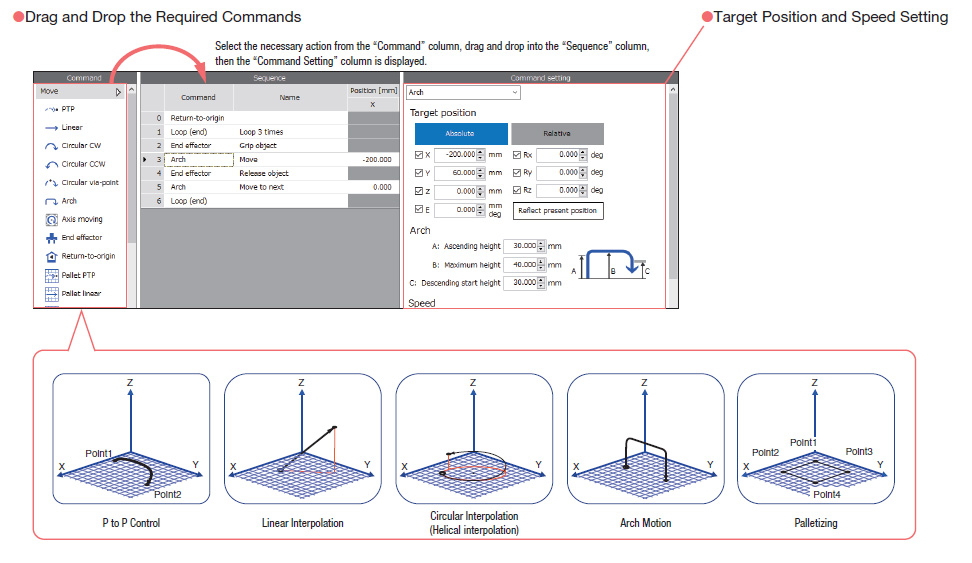

STEP 2 Â Say Goodbye to Ladder Logic! Select Items to Program Operation
Program creation is done through a user-friendly command selection interface. You can create programs intuitively without needing to write complex code. The system supports P to P, linear interpolation, circular interpolation, and other advanced motion operations.

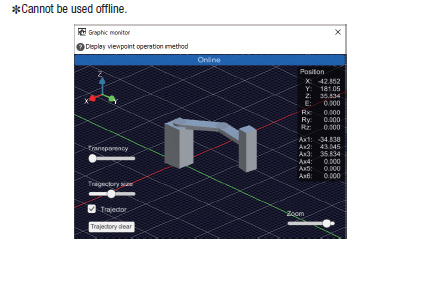

STEP 3 Â Check Operation with an Online 3D Simulator
Before deploying your robot, you can test your program using a 3D online simulator. This feature allows you to visualize and debug your program without the need for physical hardware, saving time and reducing errors.
| TIP |
When setting the home position for all axes, remove holding torque from all motors by turning on the FREE input on their drivers, then manually adjust to the home position. All AlphaStep AZ Series motors and actuators use a built-in mechanical absolute encoder, so absolute position coordinates are tracked even with the power off. |

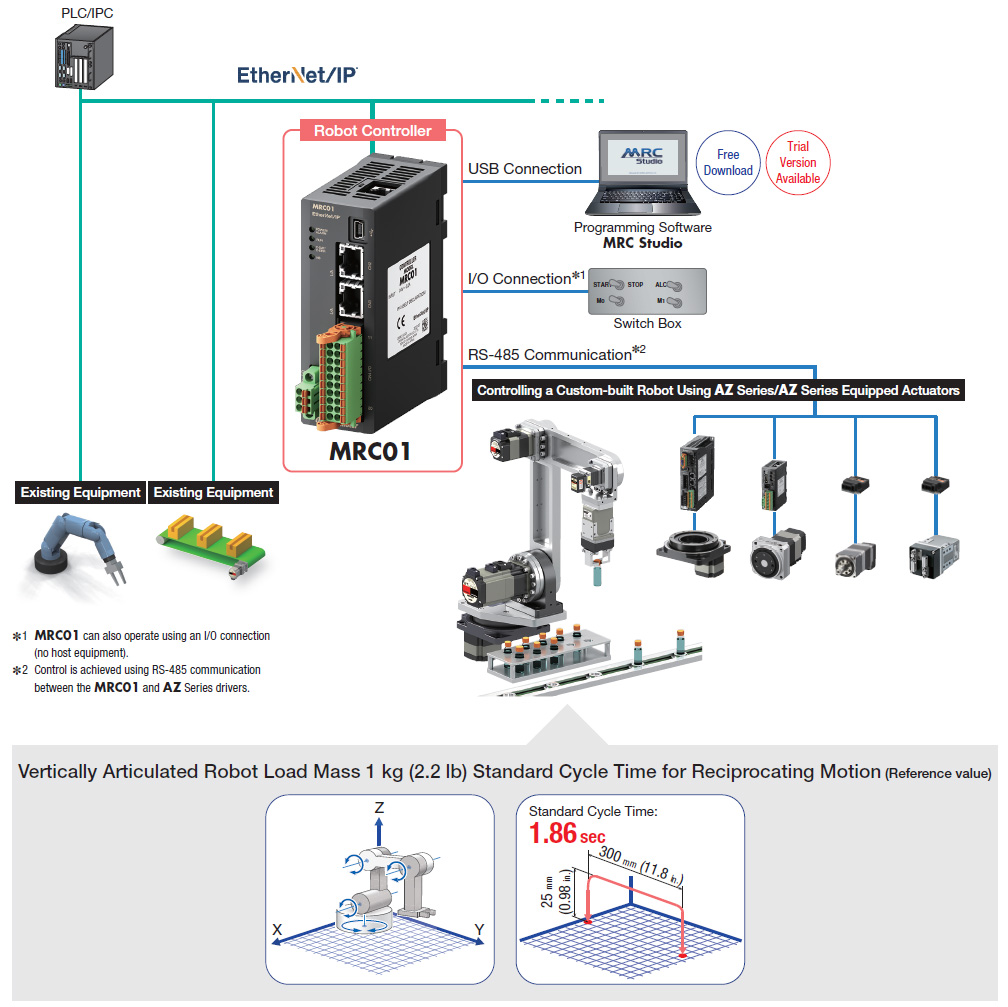

The MRC01 communicates with PLCs and IPCs via EtherNet/IP and controls motors and actuators from the AlphaStep AZ Series family through Modbus RTU. It also includes advanced features like palletizing commands, circular interpolation, and tool coordinate system jogging, making it a versatile solution for a wide range of applications.
Whether you're building a small-scale automation project or a large production line, the MRC01 and MRC Studio provide a powerful, cost-effective, and easy-to-use platform for robotics development. Try the free trial version of MRC Studio today and experience the future of robot programming firsthand.
For more information about the MRC01 robot controller and MRC Studio programming software, visit our website or contact our technical support team. We’re here to help you bring your robotic projects to life with ease and confidence.
